Here is just another method used in flashing/upgrading devices running on Amlogic chips. This method involves the use SDcard i.e., we are burning the image to the SDcard. If you are looking for how to flash/upgrade these types of devices with PC directly using AMlogic USB Burning Tool, follow the tutorial here
How to use Amlogic Burn Card Maker
Put the SDcard into a USB card reader and connect to PC. (Note SDcard is going to be formatted during this process)
Download BurnCardMaker v2.0.2 (3.96 MB)
Extract the archive and run Burn_Card_Maker.exe as administrator.
You can now click on the Chinese menu at the top then select the second option and tick English Version.
Close the app and run again as administrator.

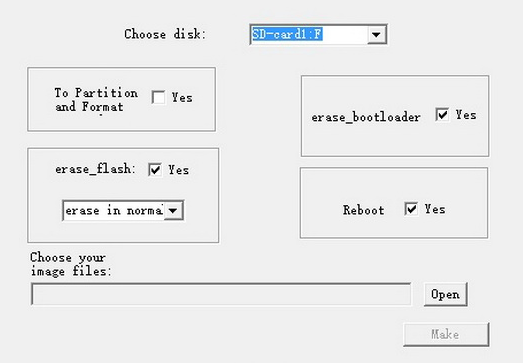

Now under Choose disk menu, Select the SDcard you want to burn the image to.
Tick the following options:
erase_flash (select erase in normal)
erase_bootloader
Reboot
Under Choose your image files, Click Open button then navigate and select the firmware image file (file name ends in .img) of the Amlogic device you want to flash/ upgrade.
Click Make button.
You will see a pop up telling you SDcard will be formatted. Click OK.
After formatting the SDcard, click done.
Burning image to SDcard will start. This process usually takes about 10 minutes too complete.
When the process is done, insert the micro SD card in the Amlogic device then power it on. Device will enter recovery mode and flash/upgrade process will begin.
When it’s done, the device will reboot. You can now remove the SDcard from the device then wait for remaining update process to complete.
